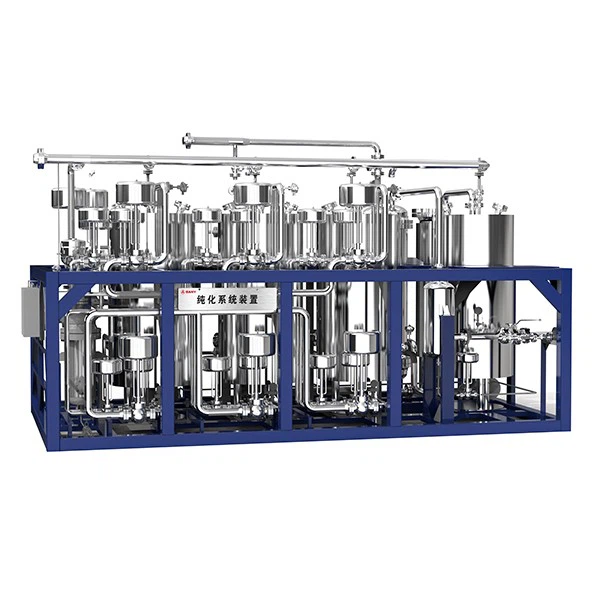

Bop System Khoom

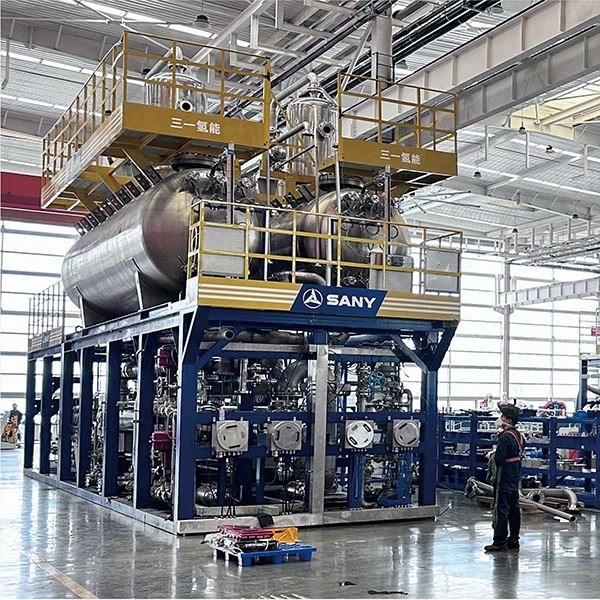

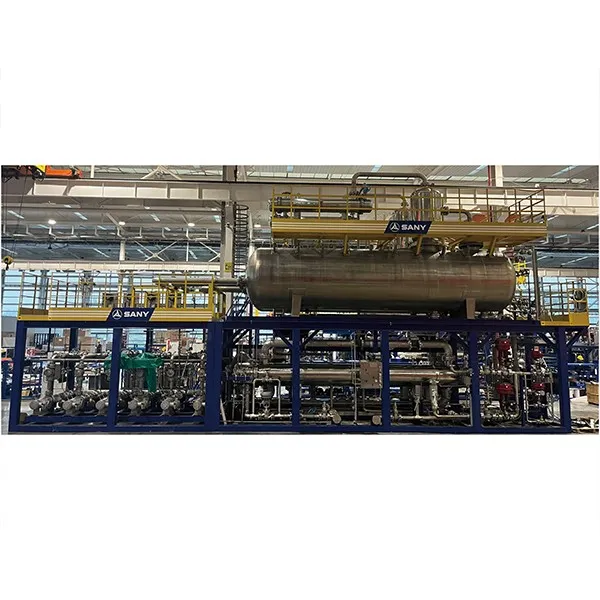

100-6000Nm³/h BOP SYSTEM EQUIPMENT
Qhov zoo
1. Kev nyab xeeb thiab ruaj khov
- Txhua-hauv-ib qhov kev ywj pheej lye rov ua dua txheej txheem, tsis siv neeg cuam tshuam kaw, tsib txheej kev tiv thaiv kev nyab xeeb, kev huv huv thiab tom qab ntawd npau taws kev tswj hwm, kev teeb tsa hluav taws xob hluav taws xob ntau dhau-kub, kom ntseeg tau tias qhov sib npaug ntawm cov kua theem, stabilize lub siab hloov, txhim khu kev qha. lub purity ntawm qhov pib, lub chamber voltage patrol (yeem) thiab lwm yam kev tswj
2. Tag nrho automation
- Tsis siv neeg sampling thiab tsom xam, tsis siv neeg dej ntxiv, ntse kua, ntse nitrogen hloov
3. Yooj yim installation
- Raws li ergonomic tsim ntawm kev sib dhos hom kev lag luam platform, skid yam sib cais system, luv lub voj voog kev teeb tsa, yooj yim los tswj thiab rov ua dua.
4. Kev ua haujlwm siab thiab txuag hluav taws xob
- Kev txawj ntse sib txuam ntawm cov khoom siv hluav taws xob electrolyser thiab qhov ceev tam sim no raws li kev hloov pauv hluav taws xob tauj dua tshiab; Kev ua kom zoo ntawm kev hloov hluav taws xob los ntawm standby electrolyser kom ntseeg tau tias qhov ntsuas kub ntawm lub tank thiab txo qis kev siv dej txias, kev ua kom huv ntawm cov hluav taws xob ua kom sov thiab tsis siv neeg algorithms kom txo tau cov cua sov.
5. Modular tsim
- Platformisation ntawm cov khoom, serialization ntawm Cheebtsam, standardization ntawm PID txheej txheem thiab interfaces
Technical specifications thiab kev ua tau zoo
Sany Group cov cuab yeej tsim khoom loj loj tau txhawb nqa kom ua tiav cov khoom loj ntawm BOP system
1. Piping Componentization
Simultaneous engineering txheej txheem tsom xam, sib cais thiab sib koom ua ke ntawm fittings kom ua tiav cov khoom tsim tawm ntawm cov kav dej, txhim kho kev tsim qauv thiab kev tsim khoom.
2. Prefabrication batch
tsim piping system prefabrication txheej txheem, paub piping batch prefabrication.
3. Cov khoom siv automation
Kev txhim kho tsis tu ncua ntawm cov yeeb nkab tsis siv neeg tshem tawm, tsis siv neeg vuam, loj-inch dabtsi yog khoov thiab lwm yam kev siv tshuab kom ua tiav cov khoom siv automation.
4. Zoo hauv online
Kev tswj hwm online ntawm cov txheej txheem tsim khoom xws li tso tawm, vuam, kuaj pom qhov tsis zoo, roj-tightness, thiab lwm yam, kom ua tiav cov lus ceeb toom ntxov thiab kev taug qab.
Sany Hydrogen qhov kev tswj xyuas zoo tsim los npog tag nrho cov txheej txheem ntawm kev lag luam, suav nrog R & D, cov saw hlau, kev tsim khoom thiab kev lag luam / tom qab muag
1. Kev tshuaj xyuas lub nkoj siab
Tag nrho cov hlab ntsha siab yog nyob rau hauv txoj kab nrog "tso lub siab lub nkoj kev nyab xeeb kev tshuaj ntsuam xyuas cov cai" cov cai, thiab los ntawm lub xeev lub koom haum ntawm Cov Khoom Siv Tshwj Xeeb Kev Nyab Xeeb Kev Tshawb Fawb thiab Kev Tshawb Fawb los ntawm cov ntawv pov thawj.
2. Lub raj xa dej welding
Kev sim tsis muaj kev puas tsuaj ntawm cov kav raj xa dej ntawm kev sib cais thiab kev ua kom huv huv hauv kev nruj raws li qhov yuav tsum tau muaj ntawm Kev Siv Hluav Taws Xob Hluav Taws Xob Code GB / T20801.
2. Kev kuaj muaj peev xwm ntawm tag nrho lub tshuab
Peb muaj peev xwm kuaj tag nrho cov tshuab ntawm cov khoom siv hydrogen, thiab tag nrho cov khoom siv (xws li cov hlab ntsha siab) tau dhau 100% ntawm cov kev xeem hauv lub hoobkas ua ntej tawm hauv lub hoobkas.
|
Lub npe |
Parameter |
|||||
|
Hydrogen muaj peev xwm (Nm3/h) |
500 |
1000/1200 | 1500 | 2000 | 4000 | 6000 |
| Lub zog sib txawv (%) | 25~110% | 25~110% | 25~110% | 25~110% | 25~110% | 25~110% |
| Purity ntawm purified hydrogen (%) | Ntau dua lossis sib npaug li 99.999% | Ntau dua lossis sib npaug li 99.999% | Ntau dua lossis sib npaug li 99.999% | Ntau dua lossis sib npaug li 99.999% | Ntau dua lossis sib npaug li 99.999% | Ntau dua lossis sib npaug li 99.999% |
| Dew point (degree) | -70 | -70 | -70 | -70 | -70 | -70 |
| Qhov system ua haujlwm siab (MPa) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Txoj kev purification | Ⅰ | Ⅰ Ⅱ | Ⅰ Ⅱ | Ⅰ Ⅱ | Ⅰ Ⅱ Ⅲ | Ⅱ Ⅲ |
| Tswj txoj kev | PLC tsis siv neeg | PLC tsis siv neeg | PLC tsis siv neeg | PLC tsis siv neeg | PLC tsis siv neeg | PLC tsis siv neeg |
| Sib cais loj (mm) | 3700*3500*4150 | 5300*3550*5880 | 6500*3110*5800 | 7505*3110*5800 | 15300*3600*7610 | 17100*3800*7800 |
| Sib cais hnyav (t) | 6 | 14.5 | 18 | 22 | 49 | 58 |
| Ua haujlwm hnyav (t) |
8.5 |
17.5 | 20.5 | 27 | 66 | 76 |
| Purification sab nraud qhov ntev (mm) | 3800*2000*2700 | 5500*3100*3800 | 5600*2900*3510 | 5780*2900*3510 | 10640*3650*3900 | 11540*3650*3900 |
| Purified hnyav (t) |
6 |
9 | 10 | 12 | 36 | 42 |
| Ua haujlwm hnyav (t) | 6.8 | 10 | 12 | 14 | 46 | 55 |
Scope ntawm daim ntawv thov
1. Kev lag luam hluav taws xob:Nws tuaj yeem siv rau hauv thaj chaw xws li kev tsim hluav taws xob, lub zog cia thiab roj hlwb.
2. Kev thauj mus los:Siv nyob rau hauv kev thauj mus los, hydrogen ntau lawm thiab hydrogenation integrated chaw nres tsheb electrolyzer hydrogen ntau lawm, hydrogenation chaw nres tsheb hydrogenation. Hydrogen fuel cell on-board hydrogen storage systems for medium and heavy-duty tsheb, sab nraud hydrogen qhov chaw hydrogenation chaw nres tsheb, thiab kev tswj cov tsheb thauj mus los hydrogen nyob rau hauv cov cheeb tsam uas tsis muaj hydrogen qhov chaw. Txhawb txoj kev loj hlob ntawm hydrogen roj cell tsheb.
3.Industrial siv:Green hydrogen synthesis, ammonia synthesis, methanol synthesis, refining thiab thee chemical kev lag luam, thiab kuj siv los ua tus neeg sawv cev txo qis hauv kev lag luam metallurgical. Nws yog siv nyob rau hauv kev lag luam teb xws li tshuaj lom neeg ntau lawm, hlau ua, thiab synthesis ntawm hydrogen los ntawm hydrides.
Qhov zoo ntawm All-in-One Separation thiab Purification System
BOP ontology kev lag luam:Cov qauv kev teeb tsa ntawm cov roj-kua processor siv plaub-rau-ib txoj haujlwm tuaj yeem txo cov khoom siv roj-kua processor peev los ntawm 30%.
Txo kev nqis peev hauv kub standby system:ntau lub tshuab hluav taws xob hluav taws xob sib koom ua ke ntawm cov roj-kua sib cais tso tsheb hlau luam, tsuas yog ib qho ntawm plaub lub tshuab hluav taws xob electrolysis yuav tsum tau pib qhov kub standby fais fab mov los xyuas kom meej tias tag nrho cov system yog kub standby, thiab muaj chav rau optimizing siv cov khoom siv hluav taws xob. kub standby yav tom ntej.
Fast startup:cia li tswj cov cua sov hloov ntawm cov khiav thiab standby tso tsheb hlau luam, txo cov dej txias noj thaum lub sij hawm kom ntseeg tau tias lub standby tank nyob rau hauv lub optimum standby tank kub.
Txuag qhov chaw:lub kaw lus yog kev koom ua ke ntawm cov nplai loj, txuag ntau pua square meters ntawm qhov chaw.
Txo qhov system harmonics:kev tswj siab tshaj plaws ntawm kev sib raug zoo txawm tias tsis muaj IGBT cov khoom siv hluav taws xob
Txo cov haujlwm O&M:generalization ntawm spare qhov chaw
Ib chav tsev tu txheej txheem configuration:plaub-hauv-ib qhov system tau teeb tsa ib chav tsev "nrog rau kev tshem tawm rov qab" txheej txheem, uas tuaj yeem ua kom ntseeg tau tias lub kaw lus tsis kaw nyob rau hauv cov xwm txheej ntawm kev ua tiav ntawm ib qho kev tu lub tank electrolysis, tshem tawm thiab lwm yam kev tu, tau tshaj "ib-rau-ib" txij nkawm yooj yim.
Qhov zoo ntawm Ib-rau-ib qho kev sib cais thiab Purification Systems
Tswj Flexibility:Kev tswj tau yooj yim ntawm ib chav tsev thiab kev saib xyuas ncaj qha ntawm ib qho electrolyser, tso cai rau kev hloov pauv ntawm chav tsev.
Luv thiab nyab xeeb pib thiab kaw:me me ntawm lye nyob rau hauv ib tug tib electrolyser, luv thiab du pib-up thiab kaw lub sij hawm.
Tsawg khib nyiab pib thiab kaw:Lub sijhawm luv dua kom ncav cuag purity, siab thiab kub, tsawg dua hydrogen emissions.
Yooj yim tshuaj xyuas thiab tu:yooj yim pib thiab nres ib lub tank electrolysis, yooj yim rau electrolysis tank tshuaj xyuas thiab tu.
Kev ntsuas xws li kev hloov pauv tsis siv neeg ntawm lye ncig ntim ntawm electrolysis tank nrog lub zog thiab tsis siv neeg hloov kho ntawm lub zog siab nrog lub zog, thiab kev ntsuas xws li txo qis ntawm tib zaus thaum kaw thiab laddering siab nyem kom purity ntawm hydrogen nyob rau hauv tag nrho cov txheej txheem tsim nyog. thaum pib thiab kaw, thiab nyob rau tib lub sijhawm, teeb tsa purity detectors rau ib lub tank thiab plaub-hauv-ib qhov system kom paub txog ib leeg.
