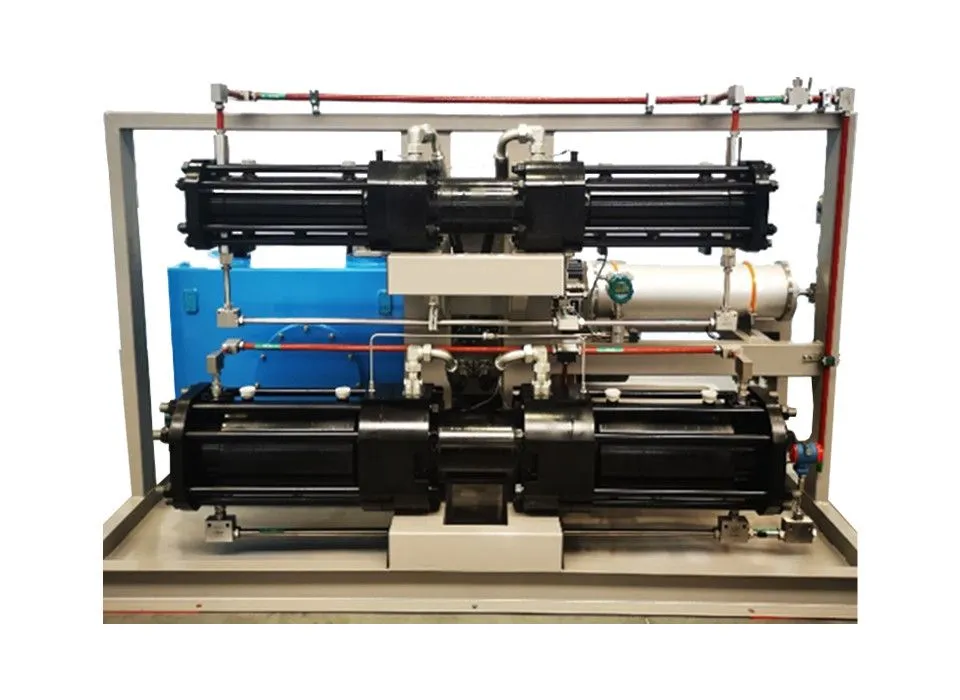

Gas Compression Skid

1. Tsau hydrogen refueling chaw nres tsheb:nruab nrog unloading, boosting, cia, thiab txias modules, nws muaj peev xwm ua tau tej thaj chaw deb refueling, cov khoom tseem ceeb raws li txoj cai saib xyuas, huab xam, thiab cov ntaub ntawv loj tsom xam, nrog ceev refueling ceev thiab siab refueling tus nqi.
2. Skid mounted hydrogen refueling chaw nres tsheb:Nws koom ua ke hydrogenation, txias, ntsuas, thiab digital tswj, thiab cov cuab yeej tsim khoom, kuaj, debugging, thiab lwm yam txheej txheem tiav hauv lub hoobkas. Kev tsim kho chaw nres tsheb yog yooj yim, yoog raws, ua haujlwm zoo, thiab muaj lub voj voog luv luv

3.Fixed/skid-mounted hydrogen refueling chaw nres tsheb:Customizable integration raws li cov neeg xav tau kev pab, txhawb diaphragm los yog kua uas tau tsav compressors

1. Ua kua compressor

■ Rau lub compressor, lub tog raj kheej roj yog sib cais los ntawm lub tog raj kheej roj, uas cov roj-dawb lubrication yog siv rau lub piston, tiv thaiv cov compressed nruab nrab ntawm cov pa paug thaum lub sij hawm compression txheej txheem. Multi-seal yog siv rau cov pa roj thiab roj chambers nyob rau hauv ib tug tshwj xeeb daim ntawv ntawm cov roj-gas cais chambers kom cais tag nrho cov roj thiab roj. Cov qauv ntawm cov roj-kua cais chambers no ua kom ntseeg tau tias hydrogen yuav tsis raug rau cov roj txawm tias muaj kev puas tsuaj rau lub nplhaib sealing, uas ntxiv cov roj purity ntawm qhov hluav taws xob. Tsis muaj lubrication system yog xav tau rau lub compressor no tsis muaj cov khoom xws li crankshafts thiab txuas rods.

■ Hydraulic piston compressors muaj cov kab qis qis thiab hloov zaus. Nyob rau hauv sib piv rau lwm yam reciprocating compressors, hydraulic piston compressors muaj tsis tshua muaj reciprocating zaus thiab piston linear ceev, ua kom lub neej ntev kev pab cuam lub sealing thiab li qub.

■ Lub tog raj kheej roj piston ntawm lub compressor yog tsav los ntawm hydraulic system uas tsis tshua muaj kev vibrations thiab tsis tshua muaj suab nrov, nyob rau hauv uas lub cev muaj zog tsav cov roj twj tso kua mis thiab ces lub compression cylinder nyob rau hauv ruaj khov loading thiab kev khiav hauj lwm tej yam kev mob, ncua kev pab cuam lub neej ntawm lub compression lub tog raj kheej thiab lub cev muaj zog.

Kev xaav muaj zog:Qhov kev ua tau zoo ntawm lub tshuab compressor no tau tshwm sim hauv nws qhov kev hloov pauv muaj zog, ncav cuag 1000Nm³ / H @ 12.5MPa muab kev txhawb zog txaus rau cov txheej txheem hydrogenation.
Siab siab tso zis:Lub tso zis siab tuaj yeem ncav cuag li 45MPa, ua rau nws zoo heev hauv cov txheej txheem siab xws li hydrogenation, ua kom muaj txiaj ntsig zoo thiab ruaj khov ntawm cov txheej txheem ntau lawm.
Wide range adaptability:Lub inlet siab ntau yog dav, los ntawm 2MPa mus rau 20MPa, uas tuaj yeem siv rau kev ua haujlwm sib txawv thiab muaj qhov ua tau zoo heev.
Kev tswj kub zoo heev:Qhov siab tshaj plaws tso cua sov tsis tshaj 120 degree, thiab tom qab txias, qhov tso cua sov yog txawm tias qis dua 40 degree, ua kom muaj kev ruaj ntseg ntawm cov khoom siv thaum lub sijhawm ua haujlwm ntev.

Cov khoom siv kev ntseeg siab

• Lub neej ntev sealing:Cov cuab yeej siv thev naus laus zis sealing zoo los xyuas kom meej lub neej kev sib khi ntawm ntau tshaj 2000 teev, txo qis txij nkawm ntau zaus thiab ntau lawm downtime, thiab txhim kho tag nrho kev ntseeg siab ntawm cov cuab yeej.
• Lub cev muaj zog tsav:Lub zog loj lub cev muaj zog yog 110kW, muab lub zog tsav tsheb rau cov khoom siv, ua kom muaj kev ua haujlwm zoo thiab ruaj khov, thiab txo cov nqi siv hluav taws xob.
• Tsawg suab nrov tsim:Cov khoom siv suab nrov yog tswj qis dua 80dB (A), coj mus rau hauv tus account lub siab rhiab heev ntawm niaj hnub kev lag luam ib puag ncig rau suab nrov, ua kom muaj kev nyab xeeb rau cov neeg ua haujlwm.

2. Compressor skids

Module-based tsim:Modules yog sib cais rau lub hydraulic system, compression system, tshav kub exchanger system, thiab pipeline system nyob rau hauv cov qauv kom yooj yim ua hauj lwm thiab txij nkawm.

Kev nyab xeeb thiab kev ntseeg siab:Cov khoom siv hluav taws xob hauv cov skids yog tawg-pov thawj nrog kev txhim khu kev qha electrostatic grounding system. Tag nrho-lifting kev ruaj ntseg li qub yog siv los tiv thaiv cov cuab yeej los ntawm overpressure. Lub tshuab ntsuas roj tau muab tso rau hauv cov skids uas txuas nrog ESD qhov system ntawm lub compressor kom kaw thiab txiav tawm cov roj nkag hauv qhov xwm txheej ceev.

Siab tsis siv neeg tsim:PLC tag nrho tsis siv neeg tswj qhov system yog saws rau kev tswj ntawm lub compressor. Lub vaj huam sib luag tswj tau tuaj yeem qhia thiab txheeb xyuas cov xwm txheej ua haujlwm ntawm lub tshuab compressor nrog lub tswb thiab tsis siv neeg kuaj cov yam ntxwv. Ib-nias pib, ceeb toom yuam kev / kuaj mob thiab lwm yam nta muaj.

Tag nrho cov dej-txias system:Nws txhawb kev sib pauv cua sov ntau dua, txo qhov tso pa tawm, thiab ua haujlwm qis dua.

Cov ntaub ntawv pov thawj tawg tau ua tiav rau tag nrho cov khoom siv raws li cov kev cai ntawm thaj av uas tus neeg siv nyob.

3. Hydrogen dispenser

Fully automatic tswj:ib-nias kev lag luam muaj rau hydrogen refueling nrog to detection, tswb thiab kaw nta. Thaum nws los txog rau lub teeb siab ntawm 35 MPa / 70 MPa thaum lub sij hawm refueling, nws nres cia li tswj kev nyab xeeb ntawm theem pib.

Wide flow range:Qhov ntau npaum li cas ntawm hydrogen dispenser yog {{0}}.0 kg/min, uas tuaj yeem ua tau raws li qhov kev thov rau hydrogen refueling nyob rau hauv ntau daim ntawv thov los ntawm me me nyob rau hauv lub chaw soj nstuam mus rau loj-scale siv nyob rau hauv industrial mob.

High-precision ntsuas:Qhov kev ntsuas qhov yuam kev tsuas yog ± 1.5% thiab qhov ntsuas rov ua tau nce mus txog 0.5% kom ntseeg tau qhov tseeb ntsuas thiab tus nqi ntawm hydrogen refueling.

Kev nyab xeeb thiab tawg-pov thawj tsim:Cov khoom pov thawj tawg tau raug lees paub raws li Ex de ib mb llC T4Gb, uas ua kom cov khoom siv tuaj yeem khiav hauv qhov chaw nyab xeeb thiab ruaj khov raws li kev lees paub kev nyab xeeb rau cov txheej txheem refueling.

4. Kev tswj vaj huam sib luag

Module-based tsim:Tag nrho cov kav raj xa dej yog module-based, uas yooj yim rau cov neeg ua haujlwm kho thiab tswj.

Kev tswj hwm kev tswj hwm zoo tsim:Tsis siv neeg refueling / cia muaj nrog ntau lub nozzles los refuel lub hydrogen-fueled tsheb tib lub sij hawm.

Kev nyab xeeb thiab txhim khu kev qha tsim:Cov kav dej hydrogen txuas nrog Autoclave fittings (C&T fittings) lossis NPT fittings. Cov khoom siv hluav taws xob ua tau raws li qhov yuav tsum tau ua kom tawg.

Adaptable rau ntau yam xwm txheej:Lub vaj huam sib luag tswj tau ua haujlwm tau zoo nyob rau hauv ntau qhov chaw ib puag ncig, ntawm qhov kev ua haujlwm kub ntawm -40 degree mus rau 50 degree, ua rau nws hloov tau rau ntau yam kev ua haujlwm.

5. Tshem tawm kab

Sophisticated pipeline tsim:Tag nrho cov raj xa dej tau npaj ua raws li cov txheej txheem ntws ntshiab uas ua los ntawm cov thawj thiab theem nrab. Thawj ntu (rau hydrogen) thiab ntu ntu ntu (rau nitrogen purging siv los hloov cov tshuaj tiv thaiv) yog qhov yooj yim los txheeb xyuas, uas tuaj yeem txhim kho qhov raug thiab kev nyab xeeb ntawm kev ua haujlwm thiab txo qis kev ua haujlwm tsis zoo.

Kev nyab xeeb thiab txhim khu kev qha tsim:Cov pa roj rau cov cuab yeej thiab purging yog cais. Tag nrho-lift kev ruaj ntseg li qub yog siv. Lub raj xa dej yog tsim los nrog lub tshuab nqus dej tsis siv neeg nrhiav pom.

Precise ntsuas repeatability:Qhov ntsuas rov ua tau ntawm cov kab tawm tawm yog 0.5%. Kev ntsuas kev tswj xyuas kom meej thiab ruaj khov.

High filtration precision:High-efficiency lim ntawm 5μm tuaj yeem tshem tawm lwm yam impurities los ntawm hydrogen thiab txhim kho cov purity ntawm hydrogen.

Hydraulic compressors yog qhov yooj yim hauv cov qauv nrog cov nqi qis ntawm kev tsim khoom thiab kev saib xyuas, uas txhawb nqa nquag pib thiab nres nrog kev hloov pauv loj hauv ib chav. Cov qauv no yuav yeej yav tom ntej. Nrog rau kev loj hlob ntawm FCEVs thiab kev nce hauv mais thiab kev thauj khoom, kev tshawb fawb thiab kev txhim kho ntawm tus nqi qis, loj-ntws thiab tso tawm siab compressors muaj peev xwm.

① Cov dej ntws loj:Loj-ntws compressors tuaj yeem muab kev pabcuam rau ntau lub tsheb, tsim kom muaj txiaj ntsig ntawm cov neeg siv khoom. 1000 kg / d hydrogen refueling chaw nres tsheb tuaj yeem txhawb nqa 40 lub tsheb hnyav rau kev lag luam.

② Siab tso tawm siab:Nrog tib lub ntim ntim hydrogen, lub mileage ntawm 70 MPa tsheb yog 67% ntau dua li ntawm 35 MPa. High-pressure refueling yog yav tom ntej qauv.

③ Yooj yim tswj:Lub neej ntawm kev hnav cov khoom xws li cov roj li qub thiab cov nplhaib sib khi hauv qhov chaw muaj kev kub siab hydrogen tau ntev, uas ua rau cov txheej txheem tu yooj yim, thiab txo cov nqi kho ntawm qhov chaw nres tsheb hydrogen.

④ Intelligent tsim:Raws li kev soj ntsuam raws li txoj cai, kev ntsuas kev ntsuas, kev ntsuas teeb meem, cov qauv ntaub ntawv, lub compressor lub neej tuaj yeem kwv yees kom tsis txhob muaj qhov poob ntawm qhov nres.

Thov hu rau peb rau kev daws teeb meem uas ua tau raws li koj xav tau, pob nyiaj siv, thiab sijhawm teem sijhawm.
